- 4-Voice polyphony
- 37 Velocity-sensitive slim keys
- Two analogue VCOs and digital multi-engine oscillator (noise, FM, user wavetables) per voice
- 2-Pole filter with drive circuit
- 1x VCA, 1x LFO, 2 envelopes
- Oscillator sync and ring modulation
- 500 Sounds can be stored (200 presets + 300 user)
- Digital effects section with modulation effects, delay and reverb
- 4 Voice modes (Poly, Unison, Chord, Arp/Latch)
- Joystick for pitch bend and modulation
- Micro-tuning with 23 preset and 6 user
- Polyphonic 16 step sequencer with motion sequencer
- Display the waveform generated by the oscilloscope function in the OLED display
- 44 Controls for direct access to all parameters
- Control panel made of durable aluminium
- Real wood back panel
- Stereo line output: 2x 6.3 mm jack
- Headphone output: 6.3 mm stereo jack
- Sustain pedal connection: 6.3 mm jack
- Sync in/out: 3.5 mm jack mono
- 2x CV in: 3.5 mm jack
- MIDI in/out
- USB B
- Dimensions (W x D x H): 500 x 300 x 85 mm
- Weight: 2.8 kg
- 9V DC power adapter included (KA350)

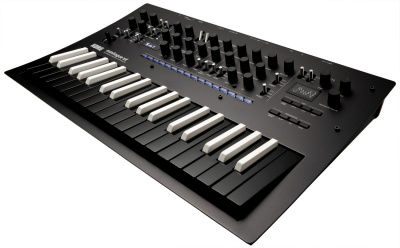

Korg Minilogue XD Inverted - Limited Edition
Limiterad utgåva med inverterat klaviatur. Begränsast antal.
Analog polyfonisk synt med 37 tangenter, digital multi-engine, effekter, förbättrad sequencer och micro tuning.
Analog polyfonisk synt med 37 tangenter, digital multi-engine, effekter, förbättrad sequencer och micro tuning.
Artnr: 6-8010286
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
7490 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme
Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis, and the analog synthesizer circuit of the minilogue, whose genuine analog sound had a huge impact on the synth world.
Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd’s filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.
Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.
Equipped with a digital multi-engine
The additional sound design possibilities of digital sound are delivered by the multi-engine that's provided as a third oscillator in addition to the two analog VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that's different than analog, and use it at the same time as the analog engine, infinitely expanding the potential of hybrid sound design.
Noise generator
The noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the color of the noise.
VPM oscillator
minilogue xd’s multi-engine features a VPM (Variable Phase Modulation)/FM oscillator with a two-operator structure. It can produce sharp, metallic sounds with complex overtones beyond the possibilities offered by analog systems. With 16 types of oscillator and a SHAPE knob control, you'll be able to create complex sounds intuitively.
User oscillators
User oscillators allow you to load your own oscillator programs that you created or obtained via the internet. There are 16 user slots, as well as one type of morphing wavetable oscillator provided as a preset.
High-quality digital effects
minilogue xd’s high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.
User customization brings out infinite potential
The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software.
What sounds might arise from the fusion of the expanded digital oscillators with analog synthesis? Create original programs, share code, and participate in the user community. You can start with sample code provided by Korg.
Polyphonic step sequencer controlled by 16 buttons
The step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.
| Typ av synth: | Analog , Hybrid |
| Typ av synth: | Klaviatur |
