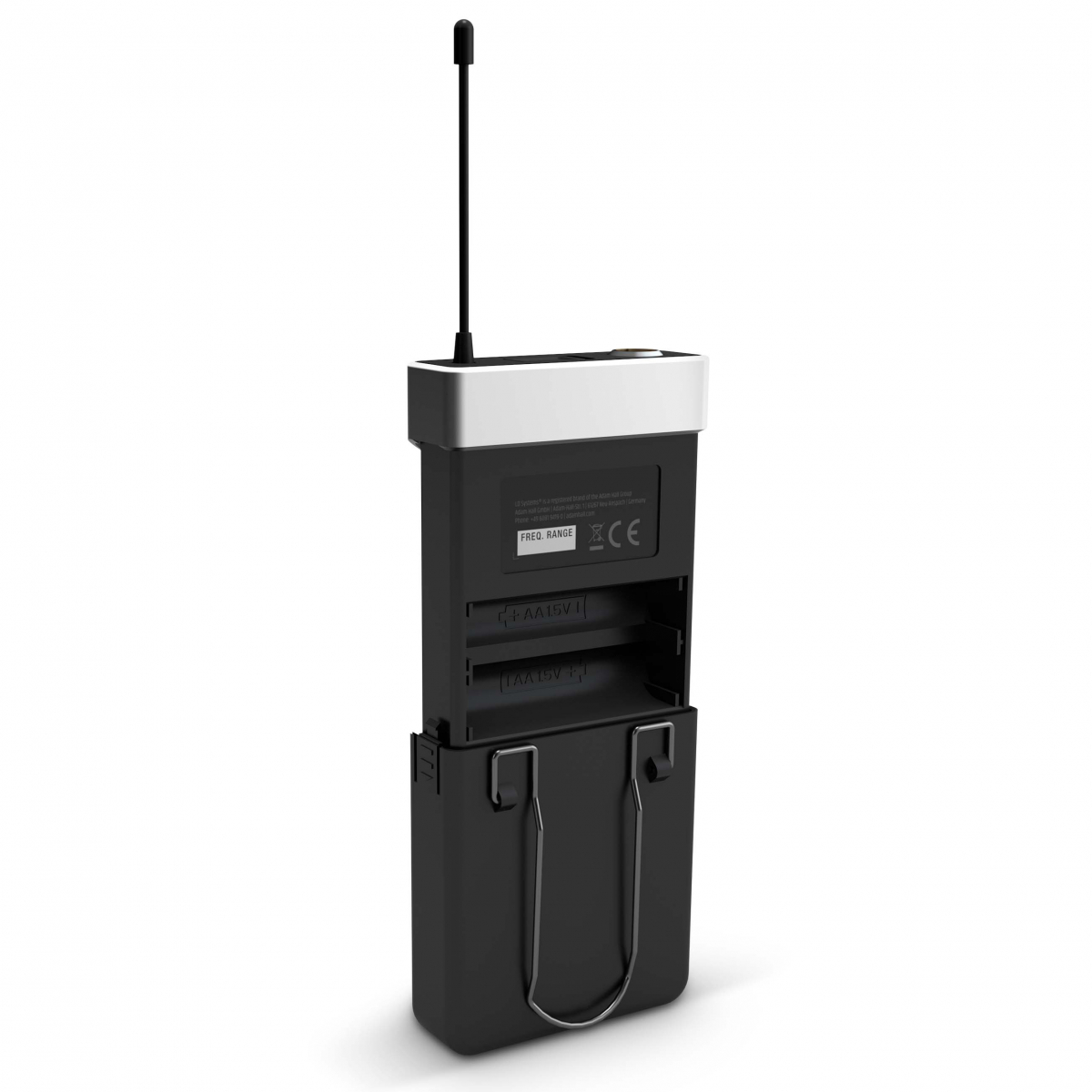

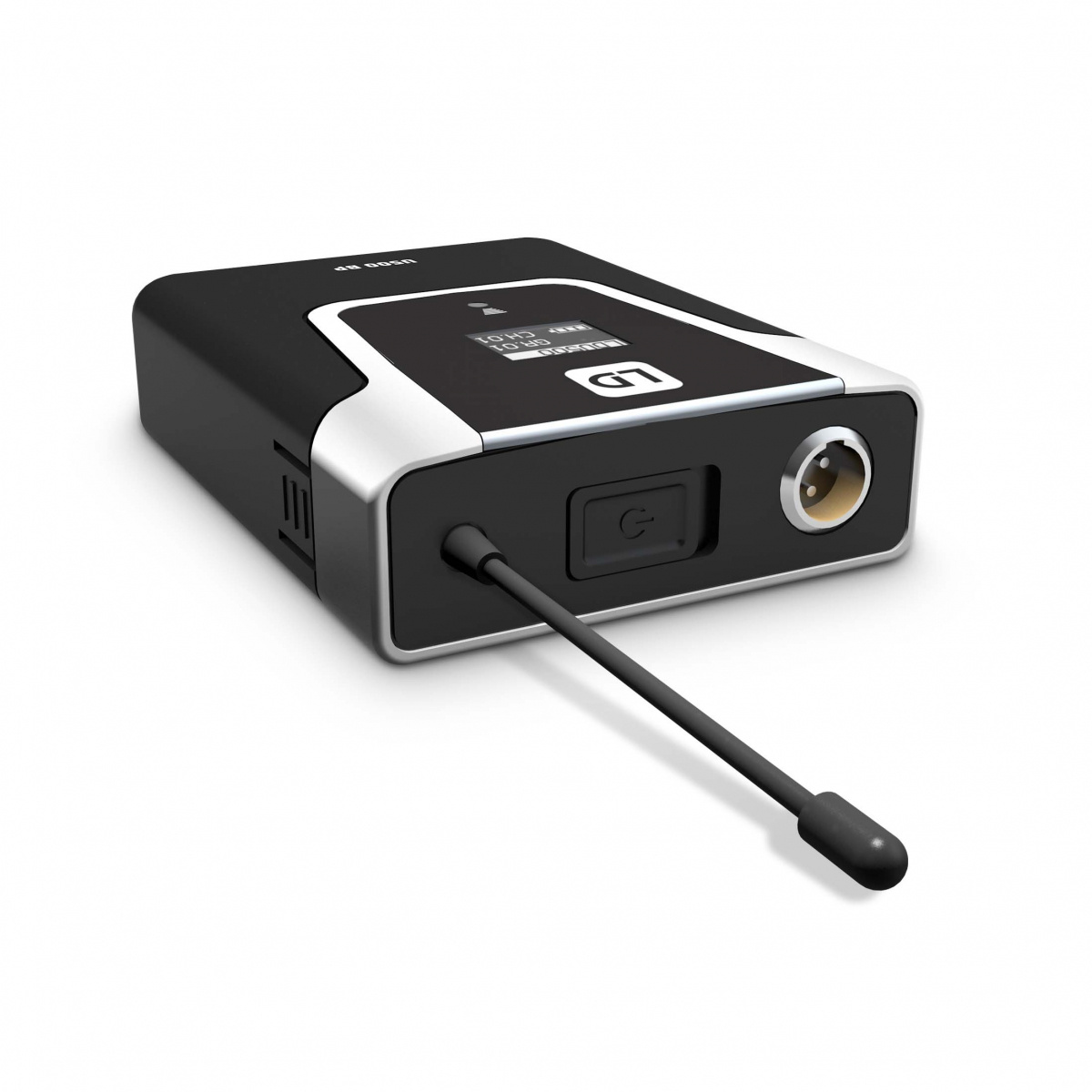

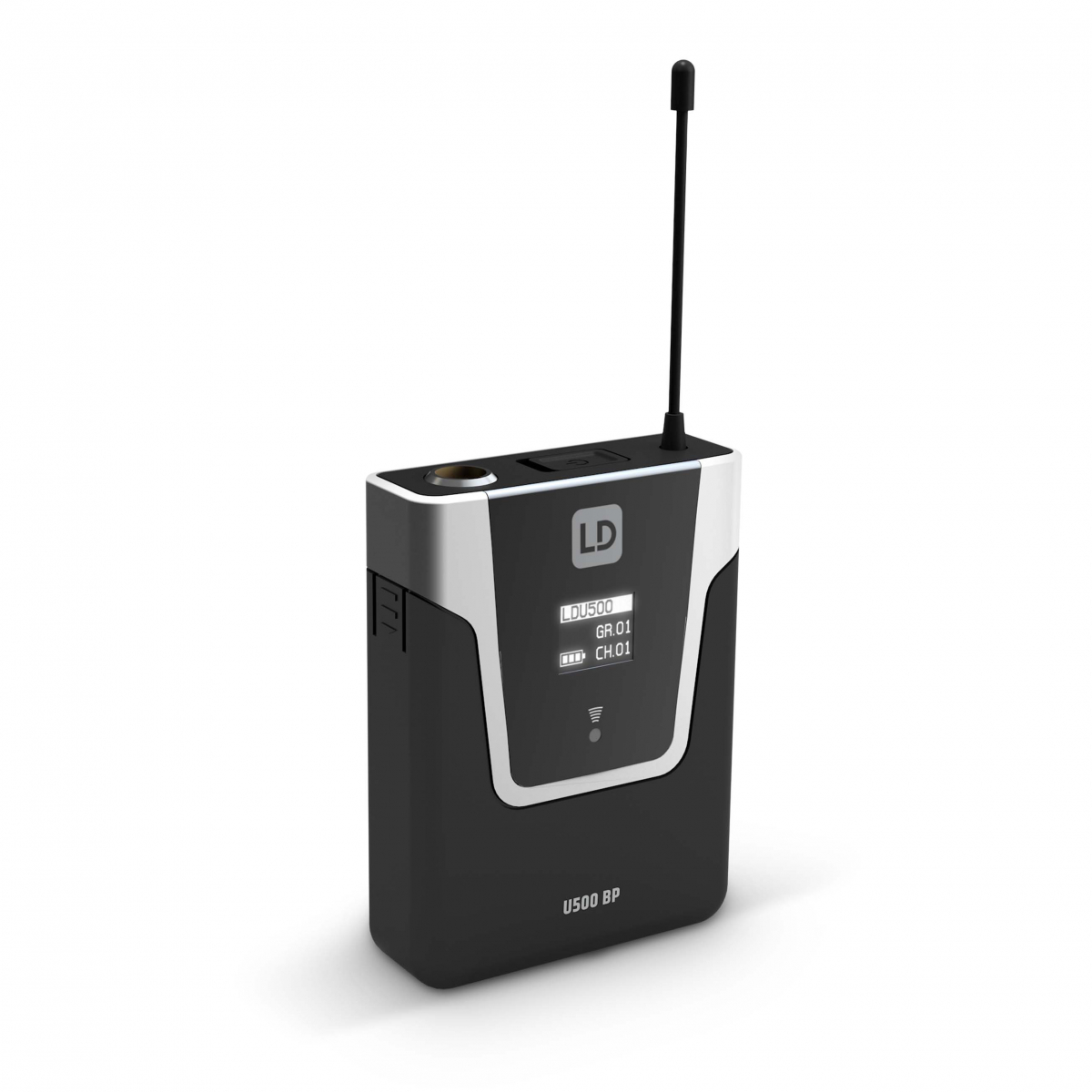

- Specification LD Systems U508 BP Bodypack transmitter:
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Channels: 96 (8 groups of 12 channels)
- Inputs: Mini-XLR (3-pin)
- Frequency response: 30 - 16000 Hz
- Rated HF output power: Variable (2mW, 10mW, 30mW)
- Signal-to-noise ratio: >90 dB
- Operating time: >10 h (with alkaline batteries)
- Operating voltage: 2 x AA battery
- Size: 65x86x23mm
- Weight: 0,09 kg
- Other features: detachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power

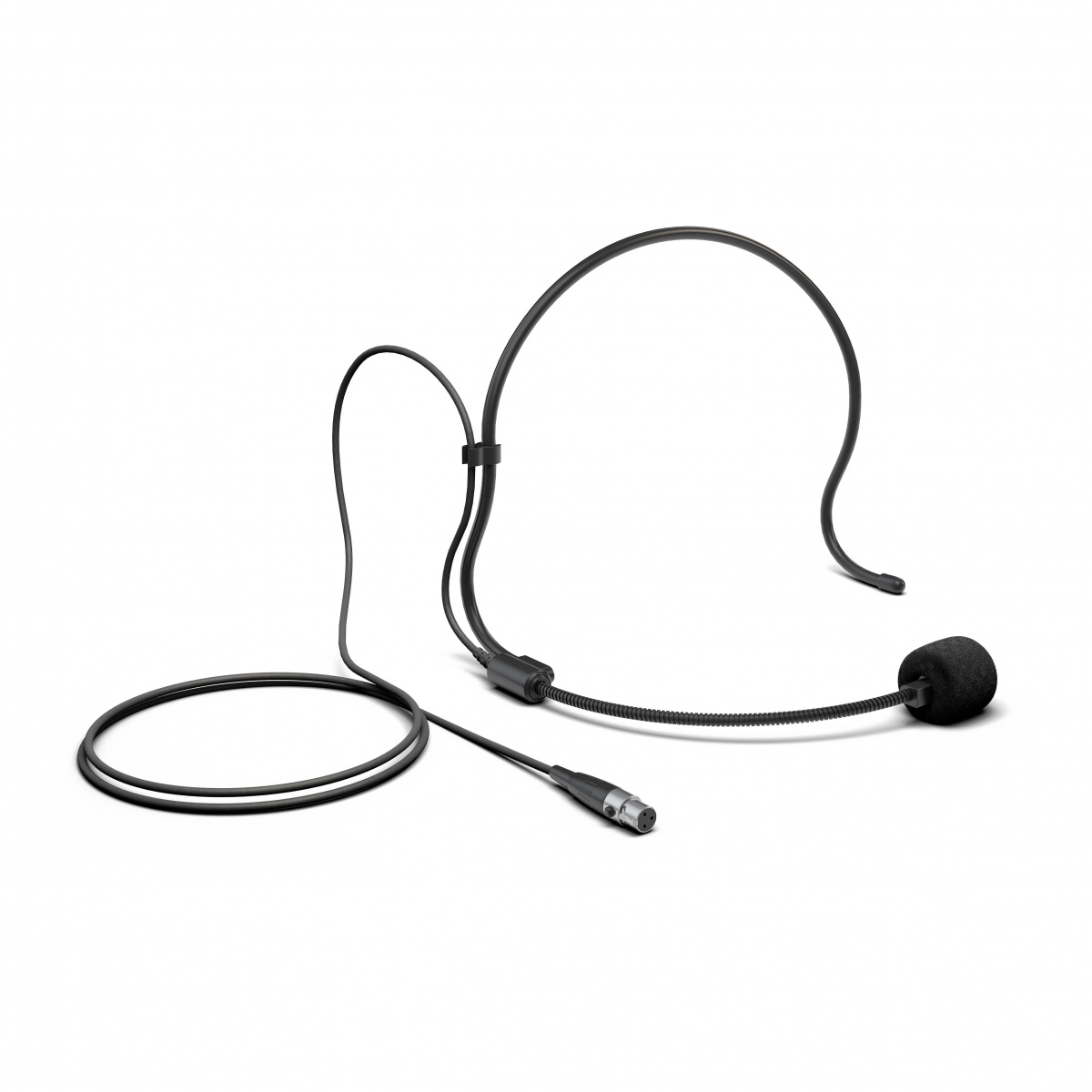

- Specification LD Systems WS 100 MH 1 Headset:
- Directivity: Cardioid
- Frequency response: 20 - 20.000 Hz
- Nominal impedance: 680 Ohm(s)
- Phantom power requierements: 5 V
- Microphone input: Mini-XLR (3-pin, female)
- Weight: 0,049 kg
- Accessories (included): Foam windscreen

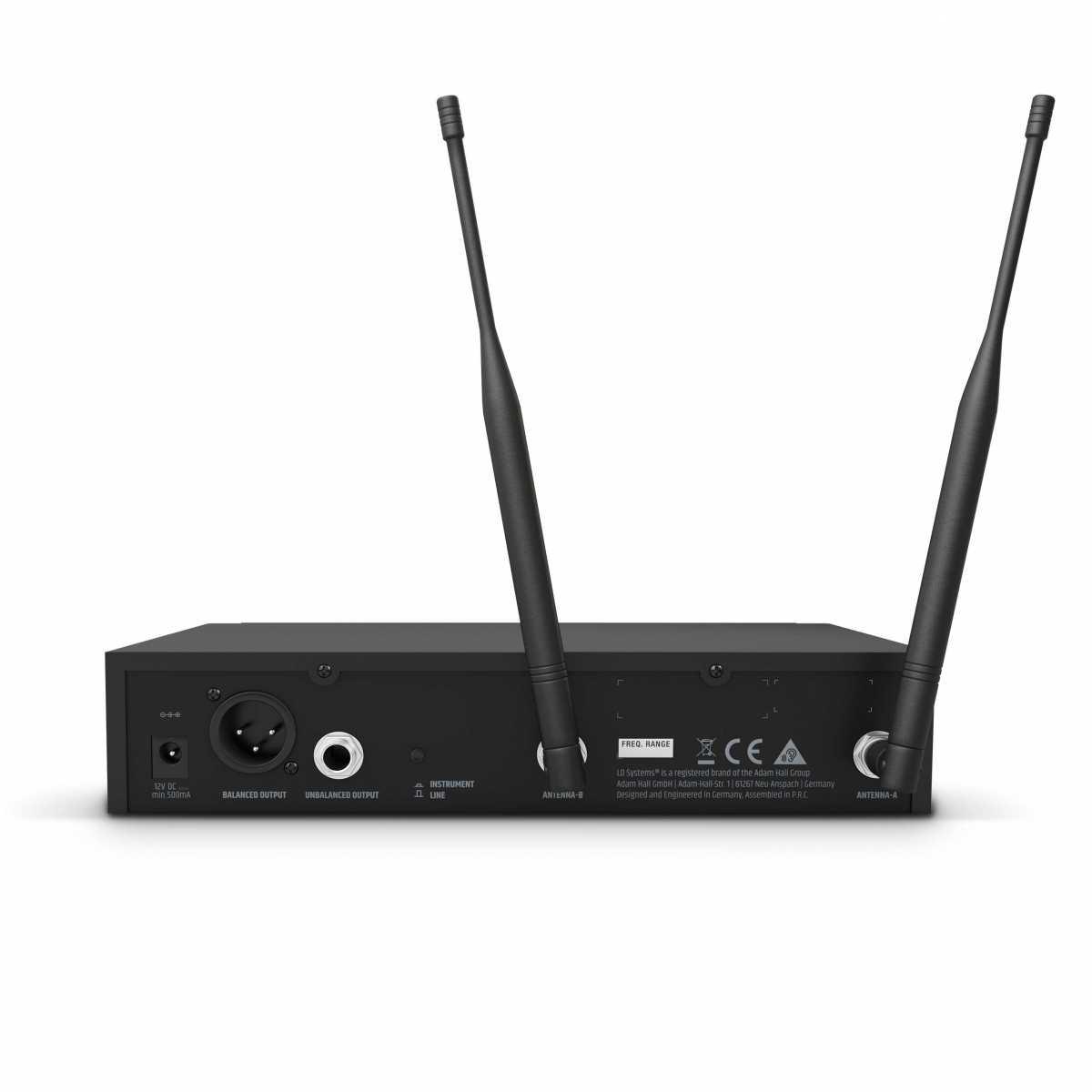

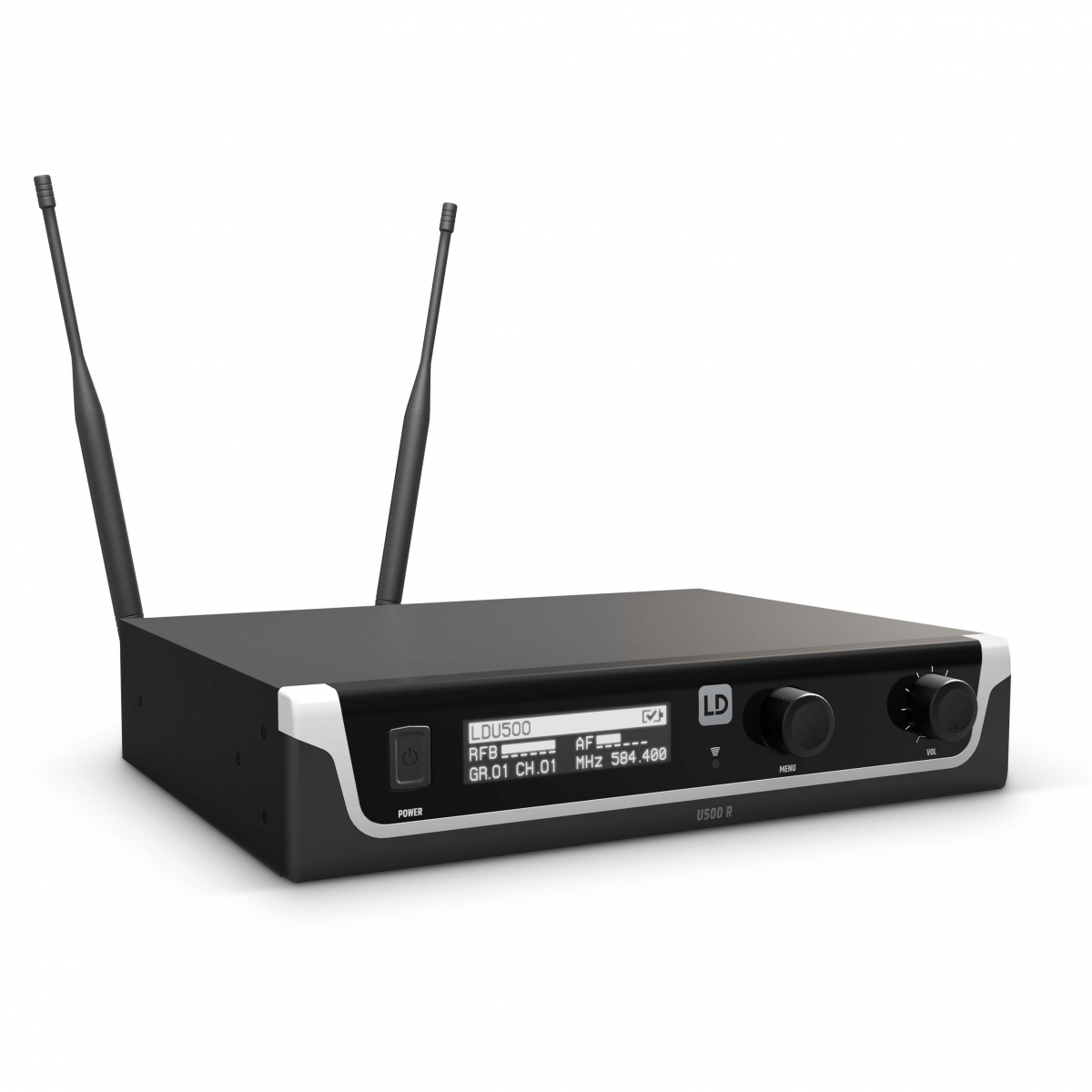

- Specification LD Systems U508 R Receiver:
- Modulation Type: FM
- Noise reduction: Squelch
- Total Harmonic Distortion (THD): < 0.3 %
- Signal-to-noise ratio: > 100 dB
- Audio output, balanced: XLR
- Audio output, unbalanced: 6.3 mm jack
- Max. output level: +10 dBu
- Controls: digital encoder, volume
- Operating voltage: 12 V DC, 500 mA
- Size: 212x44x159mm
- Weight: 0,85 kg
- Accessories (included): 2 x antenna, Audio cable, power adapter
- Other features: channel search function, Pilot tone

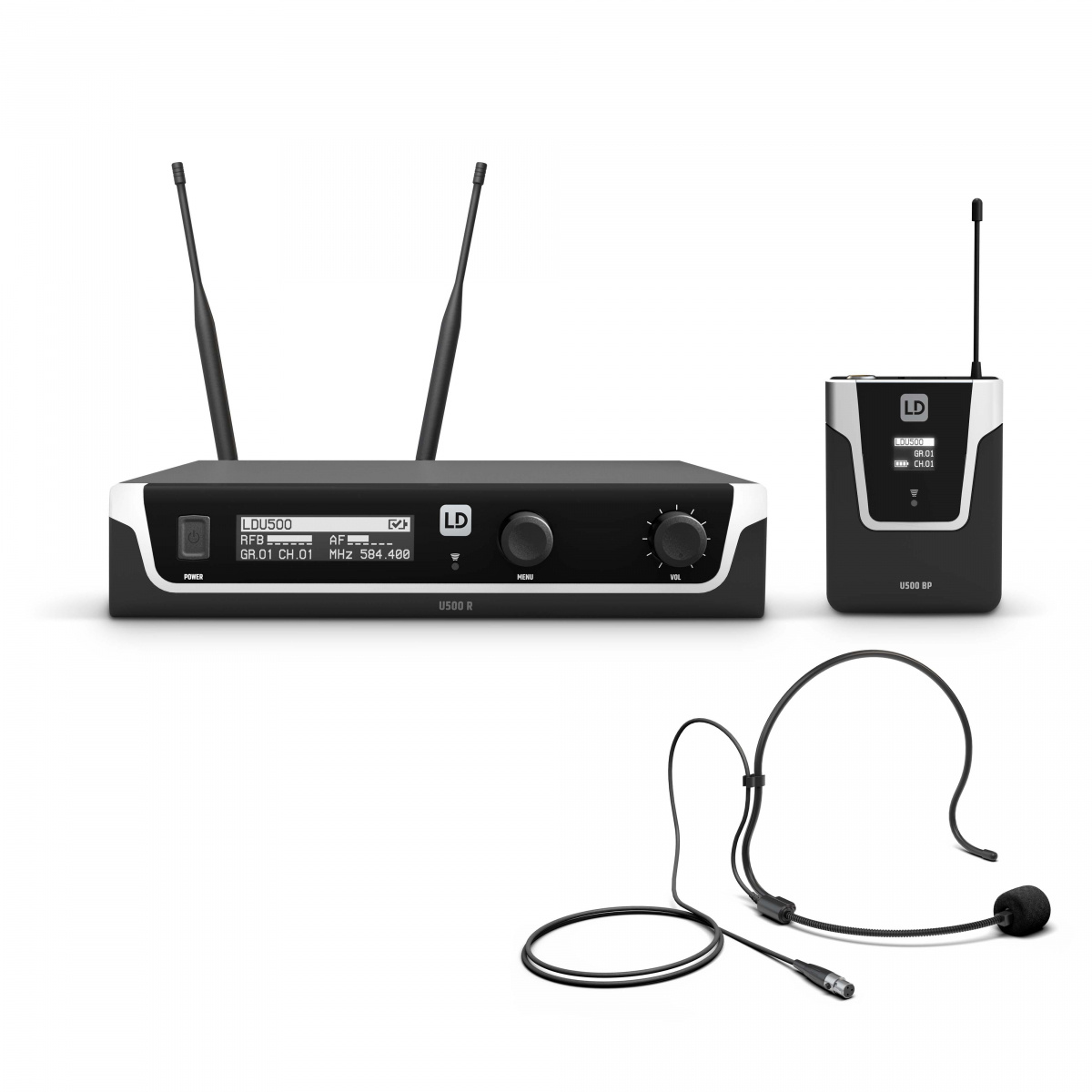

LD Systems U508 BPH Headset
Professionellt trådlöst system med headset. Stabila chassin, lång räckvidd och mycket bra ljudkvalité. Sändningsstyrkan kan ställas upp till 30mW. U500-serien har auto-scan för att hitta bästa lediga frekvens, och sedan synkar man enkelt mottagaren mot sändaren med one-touch infraröd synk.
Artnr: LDU508BPH
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
4490 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
| Typ av system: | Headset / Mygga |
