- Conductor: Flexible copper conductor low voltage audio signal system
- Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0,12mm
- Signal Insulation: PE (polyethylene)
- Copper Twisted Shield: 38 x 0,12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions: 6 x 3 mm (rectangular cable)
- 22 x 11,5 x 5,7 mm (contact house)
- Connectors: ¼” 90 degrees angled audio plug

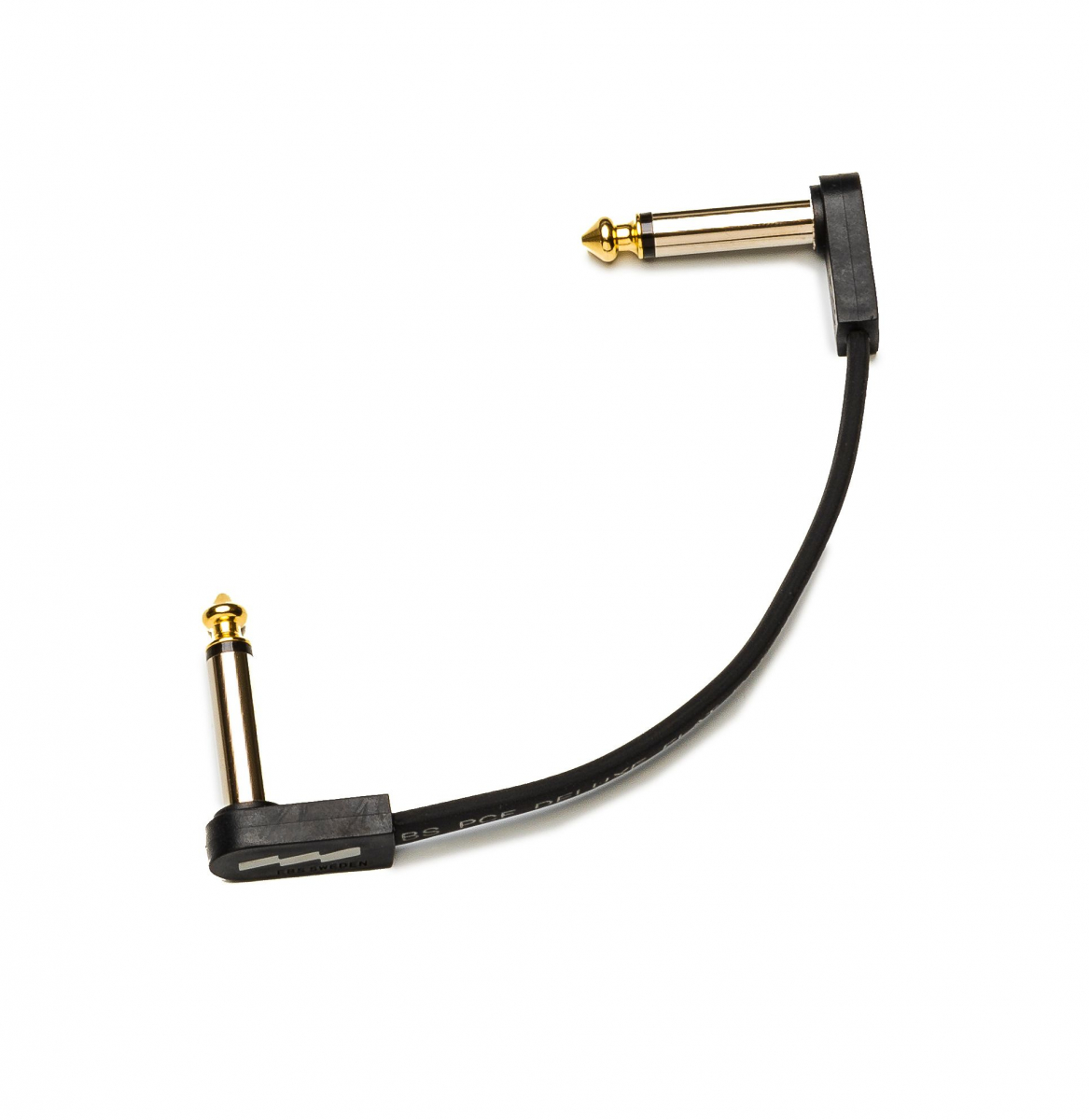

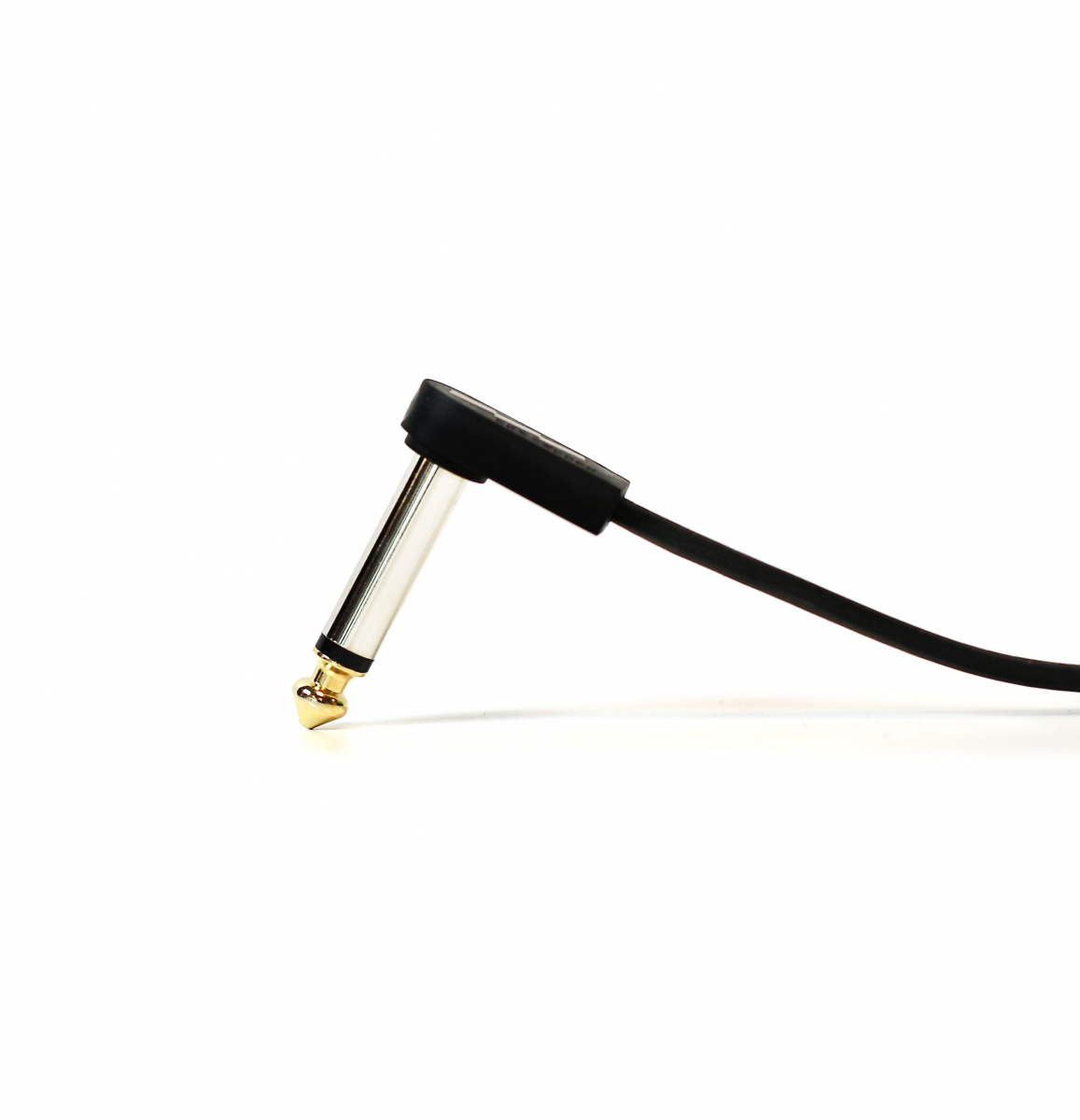

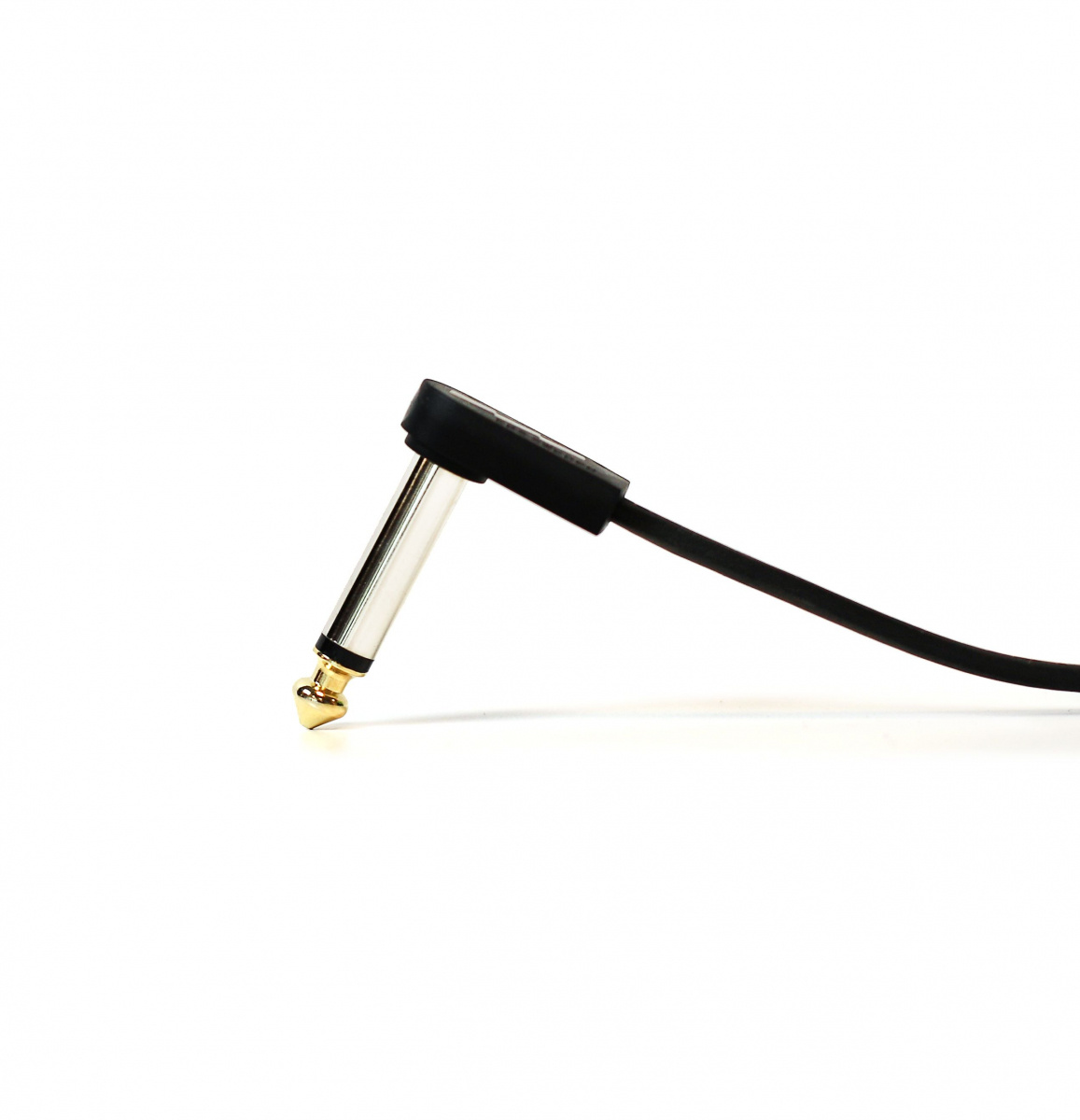

EBS PCF-DL10 Deluxe Patchkabel - 10cm
De nya patchkablarna från EBS är utformade för att du ska spara så mycket plats som möjligt på pedalbordet. De platta kontakterna gör också att du kan ha dina pedaler extremt nära varandra.
Artnr: 41-PCF10
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
70 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme

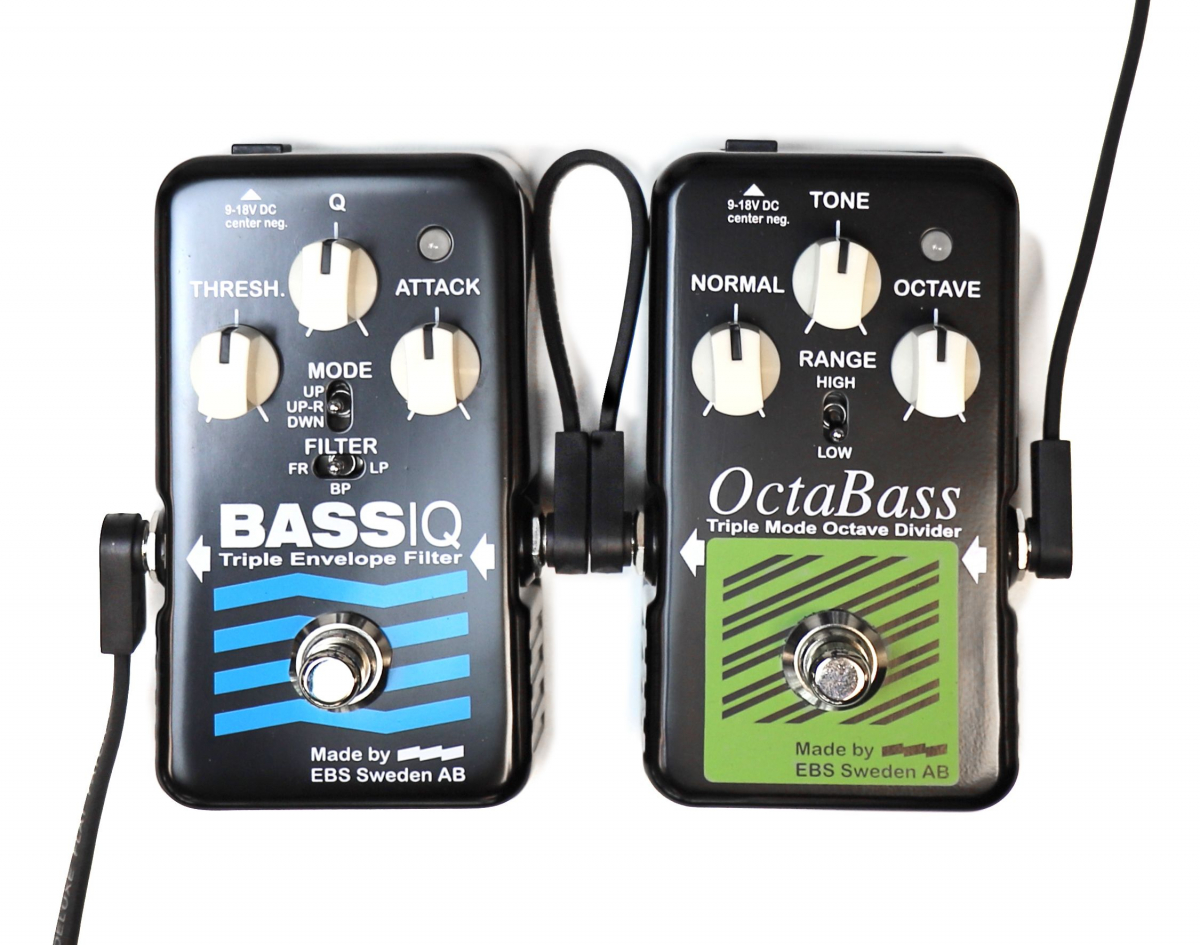

If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum by their unique design.
The new PCF Deluxe (PCF-DL, some stores refer to it as PCF-DL10G, etc.) series is the second implementation of improvements since the original design. It remains the most affordable among EBS flat patch cables.
New features from October 2021:
- 30% reduced size contact housing.
- 24K Gold Plated tip of the contacts for best performance
- Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
- Very compact size and flexible cables ensure effective use of ALL space on your pedalboard.
- Available in four lengths to cover your needs; 10, 18, 28, and 58 cm.
| Typ av kabel: | Patchkabel |
