- Drive Method Servo-type direct drive
- Platter Aluminium, die-casting diameter: 332 mm
- Motor 3-phase, brushless DC motor
- Braking System Electronic brake
- Rotation Speed 33⅓ rpm, 45 rpm
- Rotation Adjustment Range ±8, ±16, ±50 %
- Wow and Flutter 0.15% or less WRMS (JIS WTD)
- Signal-to-Noise Ratio 65 dB (DIN-B)
- Starting Torque High: 0.45 N·m (4.5 kgf·cm) or more Mid: 0.32 N·m (3.2 kgf·cm) Low: 0.2 N·m (2.0 kgf·cm)
- Start Time 0.3 sec (at 33⅓ rpm)
- Brake Time Max: 3.5 seconds Mid: 1.0 seconds Min: 0.5 seconds or less
Tone Arm
- Arm Type Universal type S-shape tone arm / Gimbal-supported type bearing structure / Static balance type
- Overhang 15 mm
- Effective Length 230 mm
- Tracking Error Within 3°
- Height Adjustment Range 6 mm
- Stylus Pressure Variable Range 0-4 g (1 scale 0.1 g)
- Single Cartridge Weight 2.5-12 g (includes mounting materials)

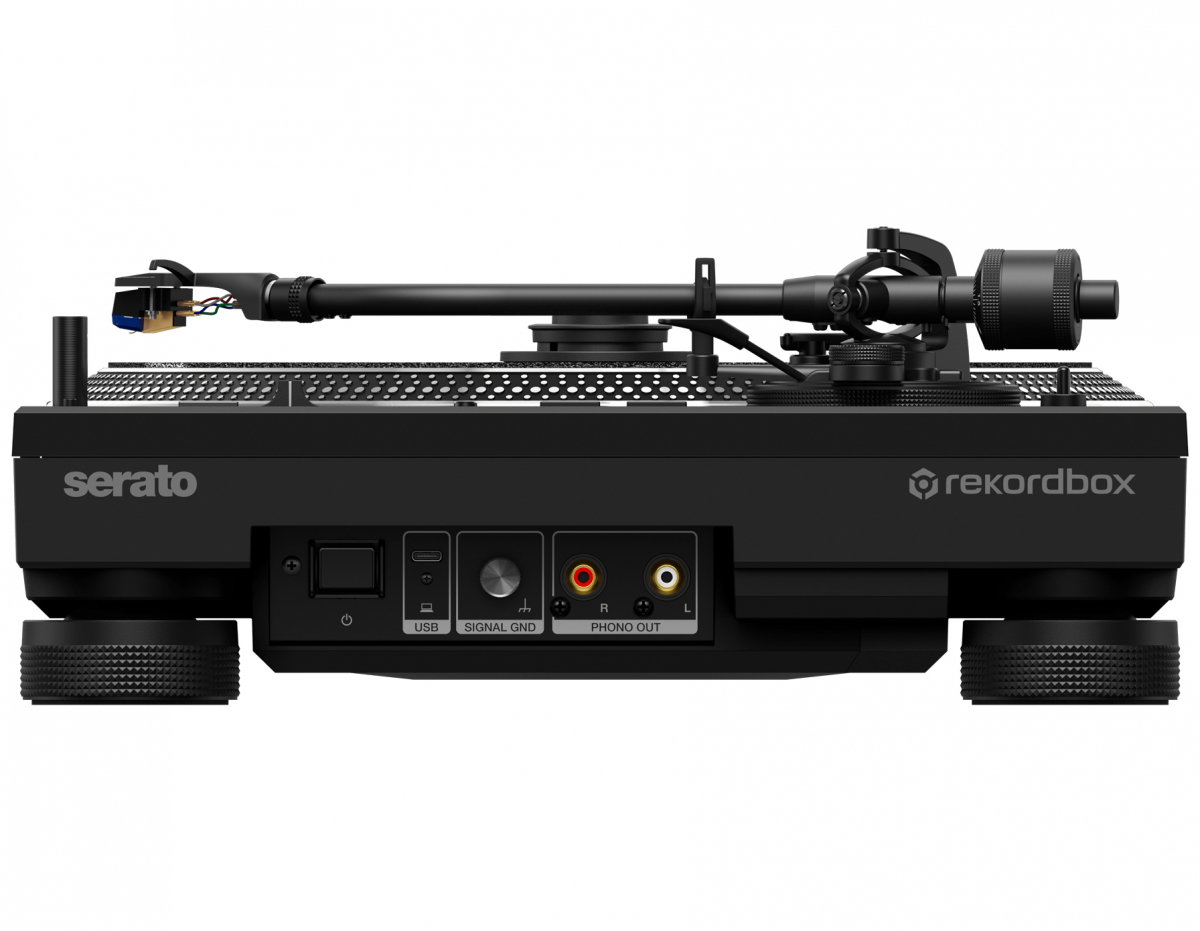

Terminals
- USB 1 USB C port
- Outputs 1 PHONO(RCA)
- Bredd 453 mm
- Höjd 159 mm
- Djup 353 mm
- Vikt 12.2 kg
