- '2A Style, Transformer balanced, high voltage, opto tube compressor.
- Utilizes premium grade input and output CineMag USA Transformers.
- Utilizes USA made Kenetek opto attenuator.
- Premium Tung-Sol and Electro-Harmonix tubes. 2x 12ax7, 1x 12bh7, 1x 6aq5
- Fully discrete signal path.
- Socketed to allow for retro-fitting with other opto-cells.
- Variable Pre-emphasis, allows for compression hipass filtering.
- Stereo-link capability.
- XLR and TRS balanced line level inputs - 600 ohms impedance.
- XLR and TRS balanced line level outputs - 600 ohms impedance.
- Frequency Response +/- 1 dB, 15 Hz to 20kHz.
- Gain 40 dB ±1dB.
- Input Level +16 dB maximum.
- Output Level +10 dB nominal, +16 dB maximum.
- Distortion Less than 0.1% THD at ±10 dBm.
- Noise = -74dB.
- Attack Time - 10 milliseconds.
- Release Time - 0.06 seconds for 50% release.
- 0.5 to 5 seconds for complete release.
- Meter shows both dB gain reduction and dB output.
- Power - 115/230 volts (switchable), 50/60 Hz.
- Dimensions - 19 Rackmount chassis, 2U. 19 x 7 x 3.5.
- Weight - 12 lbs.

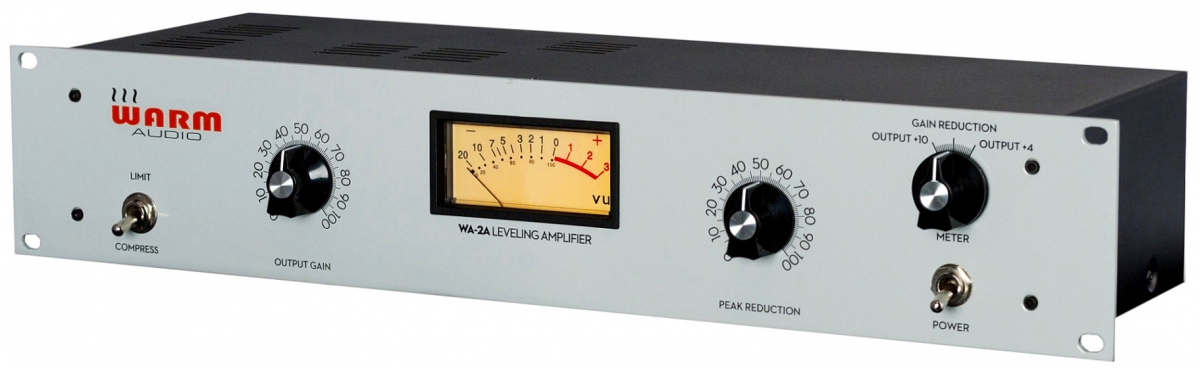

Warm Audio WA-2A Opto Compressor
Optisk kompressorenhet som är baserad på den mycket kända LA-2A kompressorn.
Artnr: 20146
Webblager:
Ej i lager. Kontakta kundtjänst.
Finns varan i butik?
Luleå
Skellefteå
Umeå
10299 kr
