Name: Palmer Monicon L Passive Monitor Controller
Brand: Palmer
SKU: PMONICONL
Price: 2390 SEK
Availability: InStock

Beskrivning
Mer information
Ge ditt omdöme

Channels: 2
Inputs: 2
Input connectors: 3.5 mm TRS, RCA, XLR
Input type: balanced/unbalanced (depending on TS/TRS connection)
Max. input level: 20 dBu
Input impedance: (balanced) 10k Ohm(s), (unbalanced) 5k Ohm(s)
Outputs: 3
Output connectors: XLR
Output type: balanced/unbalanced (depending on TS/TRS connection)
Max. output level: 20 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 - 40000 Hz
Total Harmonic Distortion (THD): 0.001 %
Max. attenuation: (Attenuator + Mute) 112, (Attenuator) 85
Controls: attenuation, input selector, mono, mute, output selector, PFL source
Cabinet material: sheet steel, wood
Cabinet surface: Powder coated
Width: 218 mm
Height: 77 mm
Depth: 100 mm
Weight: 1,14 kg

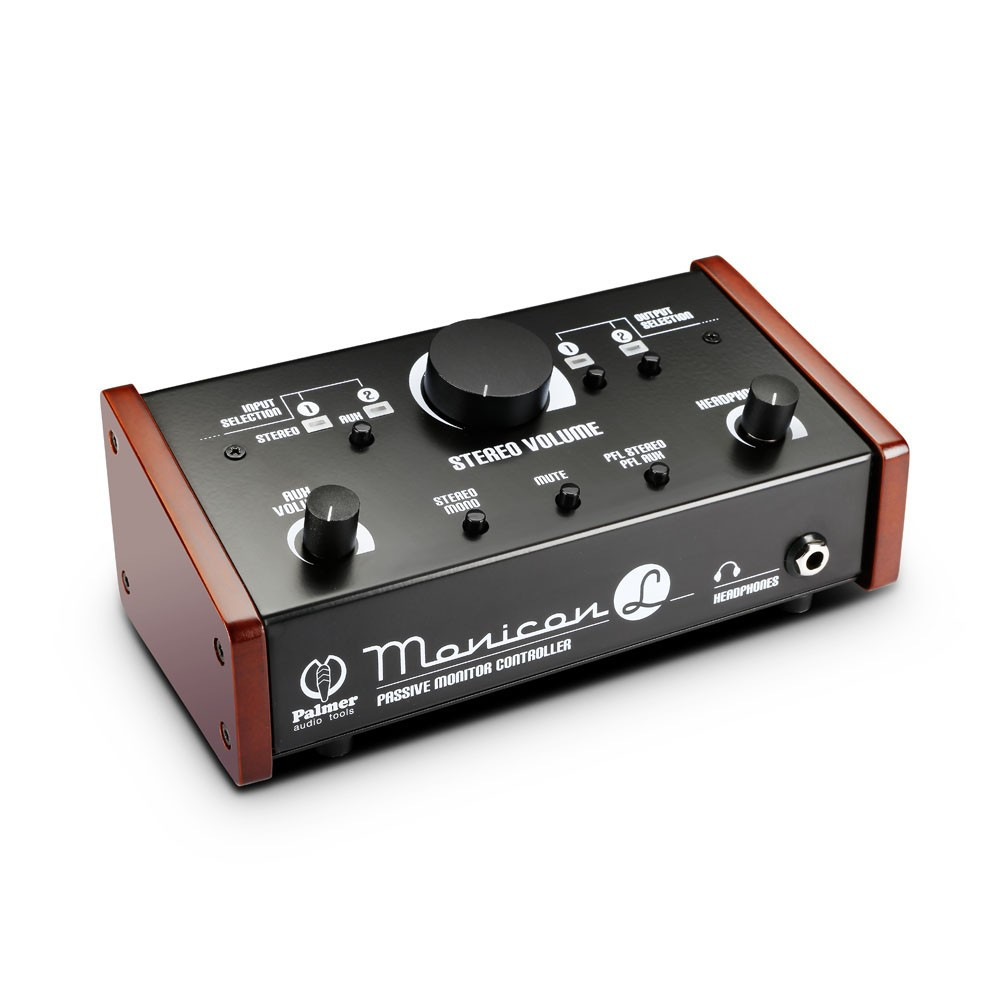

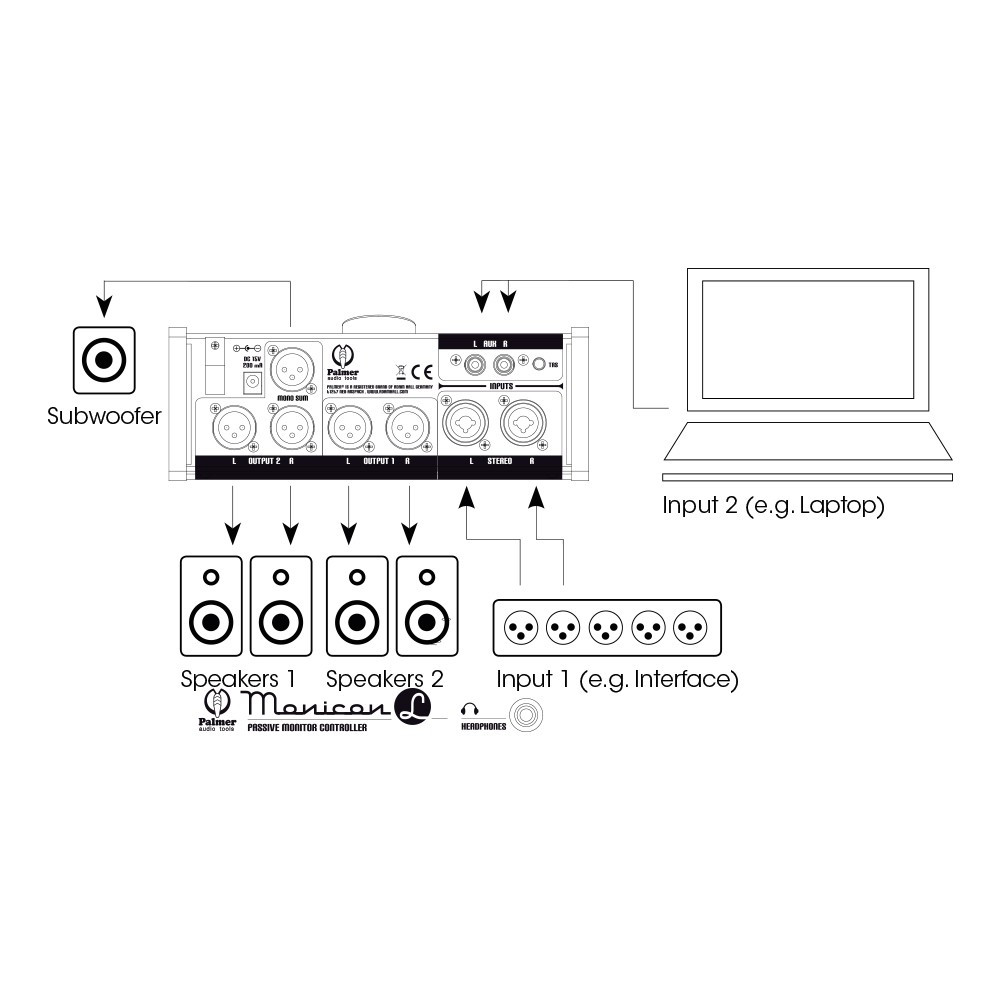

The Palmer Monicon® L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

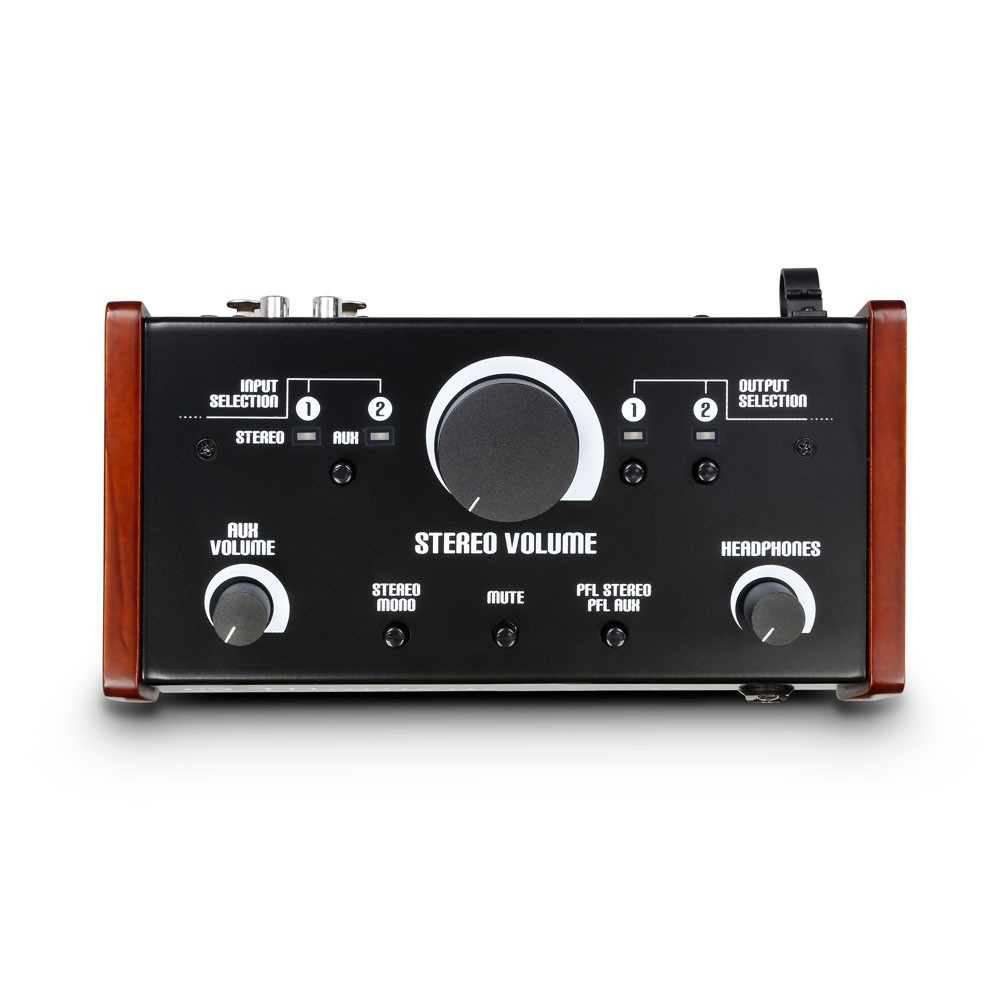

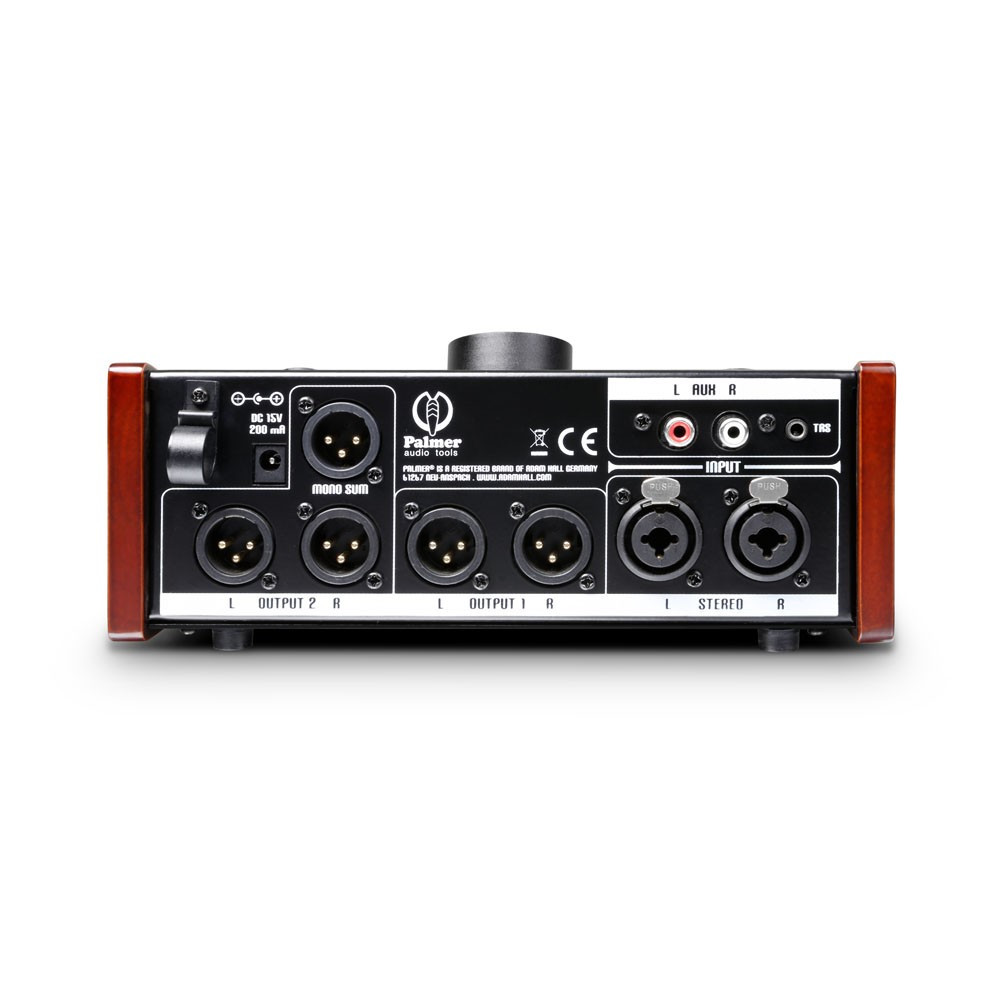

Symmetric combo sockets serve as stereo input. The Monicon® L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon® L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.
