Name: Palmer Monicon Monitor Controller
Brand: Palmer
SKU: PMONICON
Price: 899 SEK
Availability: InStock

Beskrivning
Mer information
Ge ditt omdöme

Channels: 1
Inputs: 2
Input connectors: 3.5 mm TRS , XLR
Input type: balanced/unbalanced (depending on TS/TRS connection)
Max. input level: 20 dBu
Input impedance: (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)
Outputs: 2
Output connectors: 3.5 mm TRS , XLR
Output type: balanced/unbalanced (depending on TS/TRS connection)
Max. output level: 20 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 - 40000 Hz
Total Harmonic Distortion (THD): 0.001 %
Max. attenuation: (Attenuator + Mute) 112 dB , (Attenuator) 85 dB
Controls: attenuation , mono , mute
Cabinet material: sheet steel , wood
Cabinet surface: Powder coated
Width: 164 mm
Height: 62 mm
Depth: 85 mm
Weight: 0,75 kg

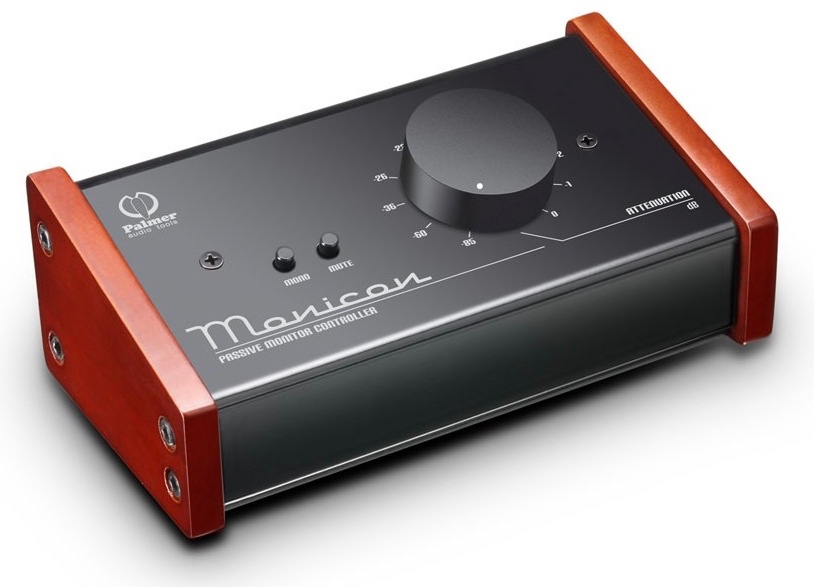

Palmer Monicon®, and the volume is right!

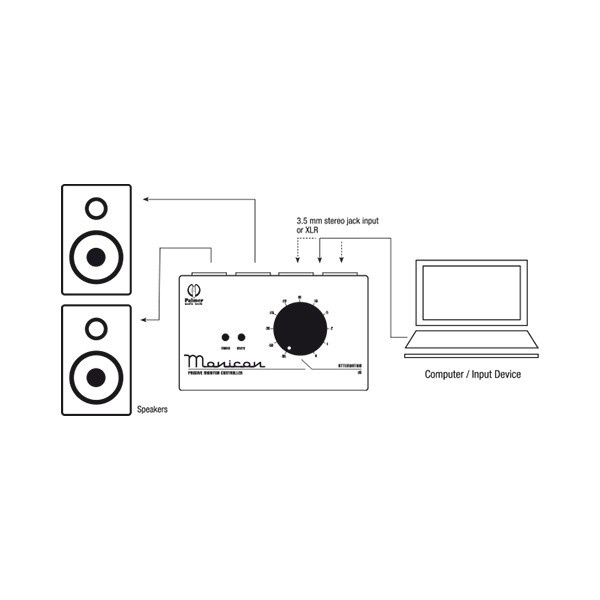

With Palmer Monicon®, your monitor volume is always under control. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.

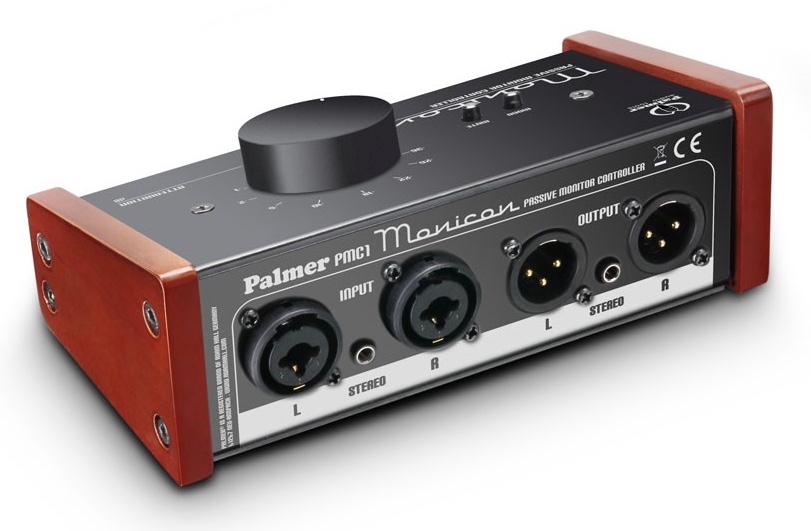

The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon® is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking "little helper" that is a typical Palmer product.
